Waste/Overflow Drain Kit -- Clawfoot Bathtub Drain (Standard)

This clawfoot tub drain / waste & overflow unit will fit any of our freestanding acrylic and cast iron bathtubs, and comes as a kit with all of the parts necessary to complete your installation. We have two mechanism options for water evacuation. A "Turn and Lift" style drain plug mechanism, or a rubber stopper and chain style like the old victorian tubs.

This clawfoot bathtub drain unit is supplied with longer tubing lengths than you'll probably need, because it is designed to be "cut-to-fit" on-site. Your plumber will use his pipe cutter to custom fit the claw tub drain and overflow pipe lengths to your specific bathtub dimensions for a perfect fit.

To help match with your plumbing, this clawfoot tub overflow drain kit comes available in your choice of finishes, and comes as a complete package containing everything necessary for installation. (gaskets, escutcheon rings, tubing, connectors, etc.)

With this clawfoot tub waste/overflow drain set, you also have a choice of drain plug styles. You can go with the more common "Turn & Lift" drain plug mechanism for a clean look, or go with the more vintage "Plug & Chain" style stopper if you prefer that authentic period antique look.

• 1 1/2 inch diameter tubing
• Fits bathtub drain holes from 1 3/4" diameter (minimum) to 2 1/2" maximum
• Fits overflow holes from 1 3/4" diameter (minimum) to 2 7/8" max
• Waste tube (shoe) is 18" inches. Overflow tube is 16" long (19" down to center of junction). Bottom tube going to floor is 6" inches. All tubes are designed to be cut to size to fit your specific bathtub installation.

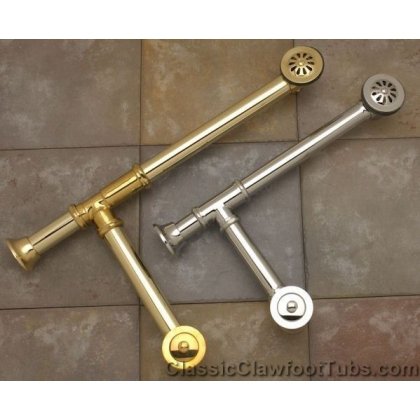

• Available in "Turn & Lift" and "Plug and Chain" drain styles. (2 Turn & Lift style drains pictured above)
• Solid brass construction available in your choice of finishes (pictured in brass and chrome examples)
• When installing this claw tub drain, the Plumber should 'rough-in' for 1 1/2" tubing compression fit at floor. The escutcheon ring height is 1 1/4" tall, and 3" wide at bottom.

To order this clawfoot tub drain set, simply select your options below and click the "Add item cart" button.
