This tub wall mounted double offset supply line set offers an attractive, finished look for your exposed bathtub plumbing.

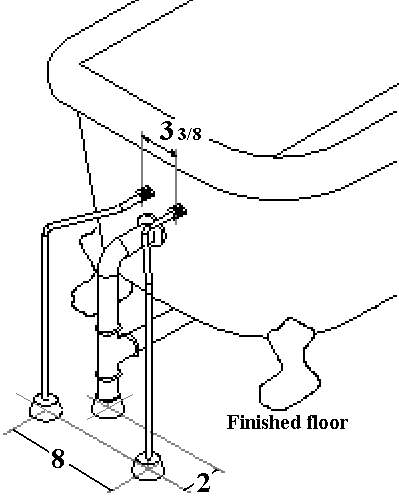

Double offset means there are two bends in each supply line going down to the floor. The top bends are to match up the 3-3/8" hole spread at the tub hole drillings, while the second bend widens to an 8" distance spread at the floor.
These clawfoot tub supply lines are made of 100% brass material construction, so you won't ever have to worry about corrosion issues, and this set comes with all the components necessary for a complete installation.
Hot and Cold water shutoff valves are also included in this supply lines set, and provide easy access to water shutoff in case of emergencies or maintenance. These shutoffs feature 1/4 turn valves from full open to full closed, and utilize high quality ceramic disc cartridges to ensure a long life.
These double offset supply pipes have a 3-3/8" distance spread at the top (measured center to center), and a larger 8" inch spread between supply tubes at the floor.
(If your water inputs at the floor are the same narrow 3-3/8" inch distance apart as your 3-3/8" tub hole drillings, then you will need the
Single Offset Supply Lines instead.)
- Quality Brass construction
- Double offset 1/2 inch tubing
- Includes cross valves
- Valves: 1/2" tube x 1/2" FIP
- Connection to faucet Hot/Cold stems is 3/4"
- Comes with polished nuts, floor escutcheons. and washers
- Available in your choice of finishes (pictured in satin nickel)
- Pictured with waste/overflow (not included)
- Pictured with telephone faucet (not included)
- Plumber should 'rough-in' for 1/2" IPS tapered thread (male at floor) approx 1" inch above the finished floor surface. Escutcheon ring height is 3/8" tall, and 2 1/4" wide at bottom.
To order this set of double offset supply lines with shutoff valves, simply select your desired finish options below and add it to your cart.
